Thermal Insulation
Suntex provides all the materials necessary for thermal insulation covers, which have been widely used in the oil, natural gas, maritime, power, aerospace, and other industrial sectors.
The outer layer protects the insulating material from environmental factors such as moisture, chemicals, and physical damage.
This layer is often made from durable materials like silicone, PU, PTFE, and aluminum fabrics.

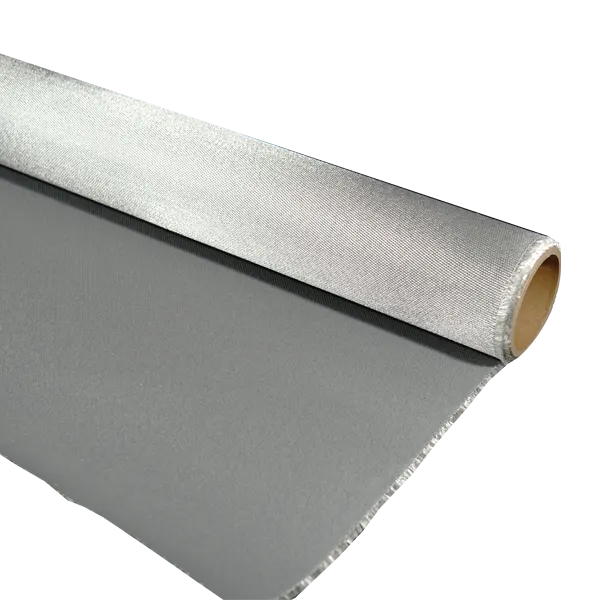

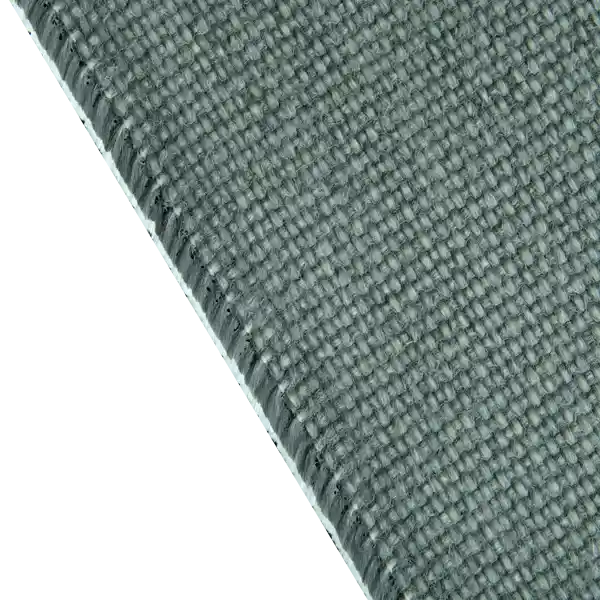

Silicone coated fiberglass fabric
Silicone coated fiberglass fabric is ideal for thermal insulation covers due to its high temperature resistance, durability, moisture and chemical resistance, low thermal conductivity, and UV protection.
| Style No. | Weight | Thickness | Coating | Color |
|---|---|---|---|---|
| Suntex-1008 | 510gsm | 0.4mm | 1 side | grey |
| Suntex-1015 | 560gsm | 0.4mm | 2 sides | grey |
| Suntex-1228 | 860gsm | 0.7mm | 1 side | grey |
| Suntex-1166 | 960gsm | 0.7mm | 2 sides | grey |
PU coated fiberglass fabric
PU coated fiberglass fabric generally offers a better cost-performance ratio. PU fabric is more economical while providing good water resistance, flexibility, and abrasion resistance, making it suitable for various applications. While silicone excels in high-temperature and durability aspects, PU fabric presents a more competitive solution for many standard uses.
| Style No. | Weight | Thickness | Coating | Color |
|---|---|---|---|---|
| Suntex-2005 | 460gsm | 0.4mm | 2 sides | grey |
| Suntex-2018 | 720gsm | 0.7mm | 2 sides | grey |
PTFE coated fiberglass fabric
PTFE coated fiberglass fabric is ideal for thermal insulation covers due to its excellent heat resistance, chemical stability, low friction, non-stick properties, and strong acid and alkali resistance, along with anti-static features.
| Style No. | Weight | Thickness | Coating | Color |
|---|---|---|---|---|
| Suntex-8001 | 580gsm | 0.4mm | 1 side | black |
| Suntex-8003 | 580gsm | 0.4mm | 1 side | grey |
| Suntex-8016 | 560gsm | 0.4mm | 1 side | white |
| Suntex-8018 | 610gsm | 0.4mm | 2 sides | black |

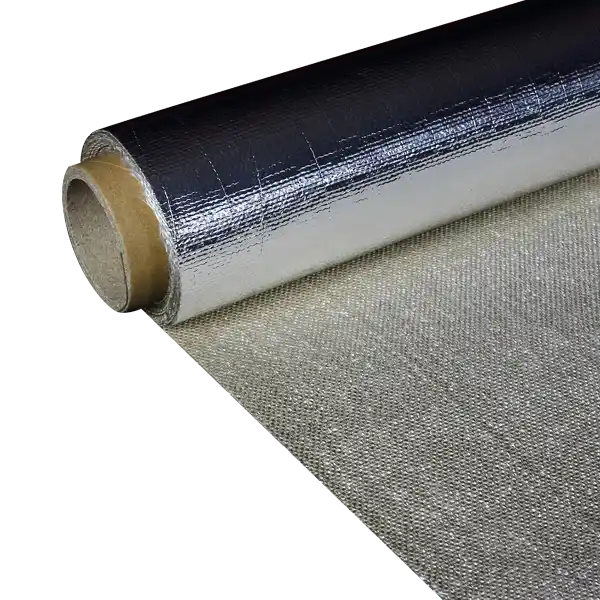

Aluminum foil/film fiberglass fabric
Aluminum foil/film fiberglass fabric is ideal for thermal insulation covers due to its excellent reflective properties, lightweight nature, and heat resistance, effectively minimizing heat transfer and enhancing insulation.
| Style No. | Weight | Thickness | Coating | Color |
|---|---|---|---|---|
| Suntex-6002 (foil) | 470gsm | 0.4mm | 1 side | sliver |
| Suntex-6008 (film) | 450gsm | 0.4mm | 1 side | sliver |
| Suntex-6005 | 640gsm | 0.7mm | 1 side | sliver |
The inner layer materials used for thermal insulation are typically chosen to provide additional thermal resistance and protection. Common materials used for inner layers in thermal insulation include heat-treated fiberglass fabric, PU coated fiberglass fabric with S.S wire reinforced, metal oxide fibergalss fabric, calcium silicate coated fiberglass fabric, silica fabric, high temperature finished ECR fiberglass fabric with S.S wire reinforced, vermiculite coated ECR fiberglass fabric with S.S wire reinforced, vermiculite coated silica fabric.

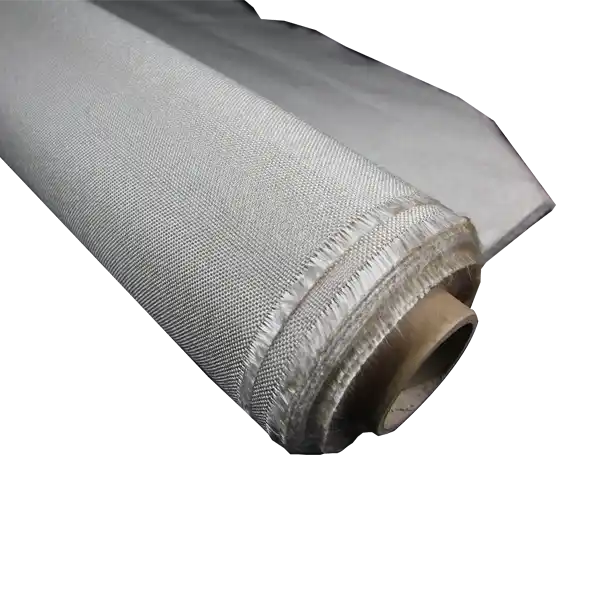

Heat treated fiberglass fabric
Heat treated fiberglass fabric for inner layers of thermal insulation offers high-temperature resistance, and no smoke when heating.
| Style No. | Weight | Thickness | Color | Remark |
|---|---|---|---|---|
| Suntex-580HT | 580gsm | 0.6mm | brown | Economic fabric, not suitable for very high temperature conditions |
| Suntex-640HT | 640gsm | 0.7mm | brown | Economic fabric, not suitable for very high temperature conditions |
| Suntex-880HT | 880gsm | 1.0mm | brown | Economic fabric, not suitable for very high temperature conditions |
| Suntex-950HT | 950gsm | 1.2mm | brown | Economic fabric, not suitable for very high temperature conditions |
PU coated fiberglass fabric with S.S wire reinforced ★
PU coated fiberglass fabric with stainless steel wire reinforcement provides enhanced durability, increased strength, improved tear resistance, and better protection against abrasion for inner layers of thermal insulation.
| Style No. | Weight | Thickness | Color | Remark |
|---|---|---|---|---|
| Suntex-2040 | 690gsm | 0.7mm | grey | better protection against abrasion |
Metal oxide fibergalss fabric ★
Metal oxide fiberglass fabric for inner thermal insulation layers offers superior heat resistance, increased mechanical strength, excellent chemical resistance, and enhanced durability, good performance in high-temperature environments.
| Style No. | Weight | Thickness | Color | Remark |
|---|---|---|---|---|
| Suntex-5053 | 950gsm | 1.0mm | brown | increased mechanical strength and enhanced durability |
Calcium silicate coated fiberglass fabric
Calcium silicate coated fiberglass fabric provides exceptional heat resistance, low thermal conductivity, excellent corrosion resistance, and durability for inner thermal insulation layers, good performance in high-temperature applications.
| Style No. | Weight | Thickness | Color | Remark |
|---|---|---|---|---|
| Suntex-5057 | 740gsm | 0.7mm | grey | good performance in hot conditions |
| Suntex-5006 | 1100gsm | 1.2mm | grey | better performance in hot conditions |
Silica fabric
Silica fabric offers outstanding heat resistance, low thermal conductivity, excellent flexibility, chemical resistance for inner thermal insulation layers, ideal for high-temperature applications.
| Style No. | Weight | Thickness | Color | Remark |
|---|---|---|---|---|
| SL600 | 600gsm | 0.7mm | brown | better performance in hot conditions |
| SL1100 | 1100gsm | 1.2mm | brown | better performance in hot conditions |
High temperature finished ECR fiberglass fabric with S.S wire reinforced ★
Specially formulated high-temperature coated ECR fiberglass fabric with S.S wire reinforced is particularly suitable for operating environments exceeding 700°C, making it the perfect choice for thermal insulation covers for steam turbines.
| Style No. | Weight | Thickness | Color | Remark |
|---|---|---|---|---|
| Suntex-5058 | 1250gsm | 1.3mm | grey | excellent performance in high temperature conditions |

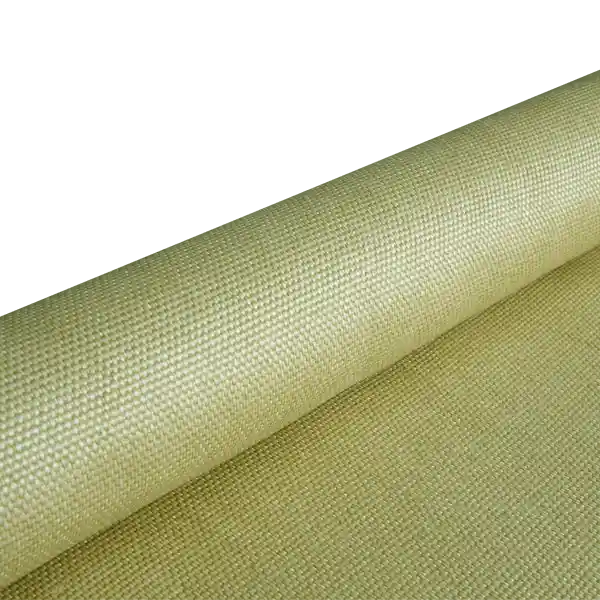

Vermiculite coated fiberglass fabric with S.S wire reinforced ★
Vermiculite-coated fiberglass fabric reinforced with S.S wire is a high-temperature fabric designed for the hot surfaces of insulation covers. It offers excellent heat resistance and thermal shock resistance.
| Style No. | Weight | Thickness | Color | Remark |
|---|---|---|---|---|
| Suntex-5065 | 1250gsm | 1.3mm | yellow | excellent performance in high temperature conditions |
Vermiculite coated silica fabric
Vermiculite-coated silica fabric is a high-temperature material designed for the hot surfaces of insulation covers, capable of withstanding ultra-high temperatures.
| Style No. | Weight | Thickness | Color | Remark |
|---|---|---|---|---|
| Suntex-5021 | 620gsm | 0.65mm | yellow | excellent performance in high temperature conditions |
| Suntex-5022 | 1250gsm | 1.3mm | yellow | excellent performance in high temperature conditions |

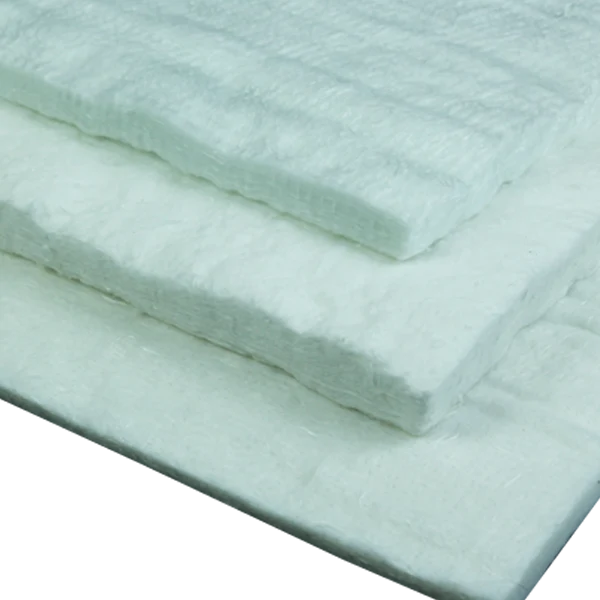

Insulating layer is the primary component that provides thermal resistance. Common materials used for insulation include fiberglass, mineral wool, foam, or other advanced insulating materials that minimize heat transfer.

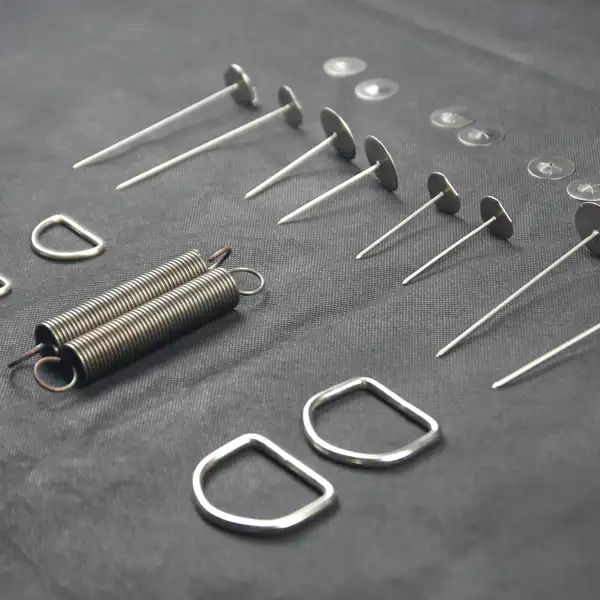

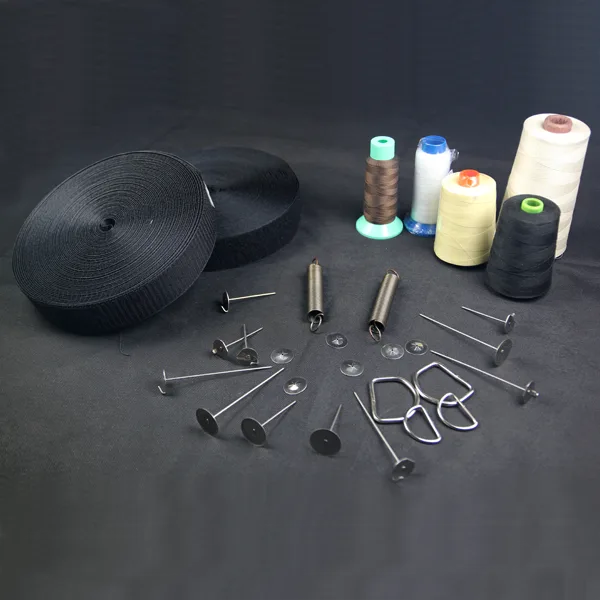

Thermal insulation covers are usually equipped with various fastening mechanisms (such as straps, Velcro, or buckles) to ensure a secure fit around the object being insulated.
