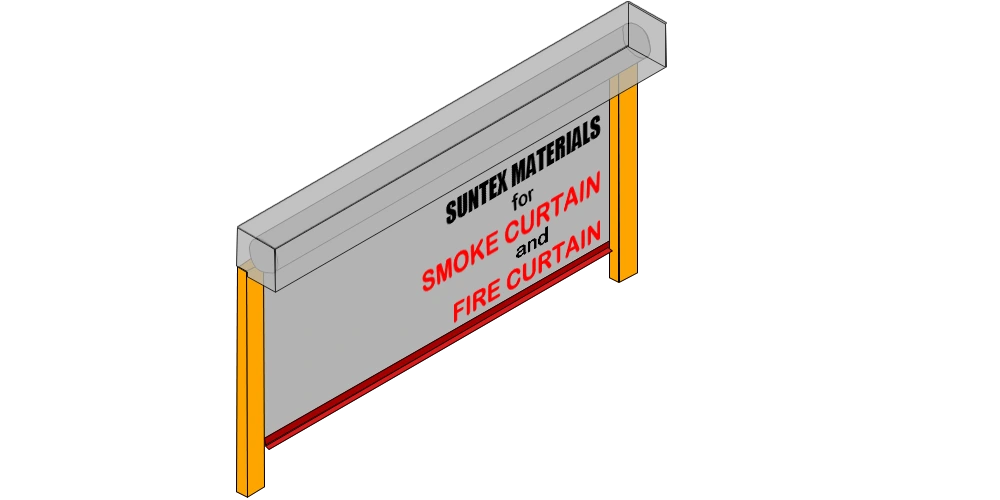

Smoke and Fire Curtain
Suntex provides the fabrics required for smoke curtains and fire curtains, which are now widely installed in various fields, including major buildings, ships, and naval vessels.
PU coated fiberglass fabric, silicone coated fiberglass fabric, aluminized fiberglass fabric, and expanding graphite fiberglass fabric are the primary materials used for smoke and fire curtains.

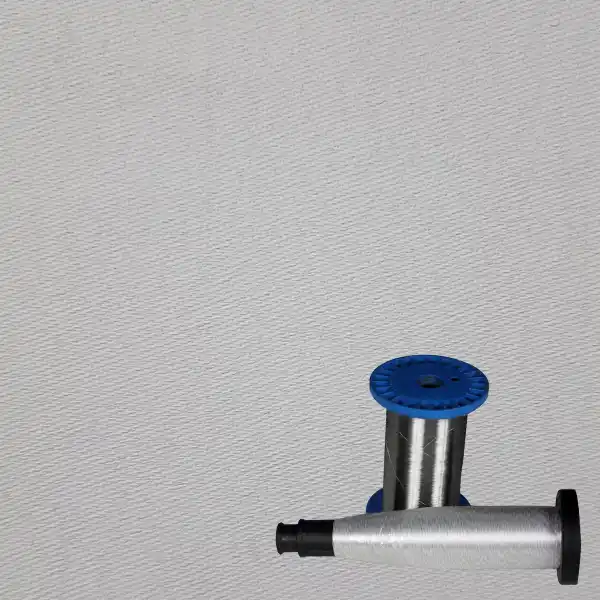

PU coated fiberglass fabric
PU coated fiberglass fabric is used for smoke curtains and fire curtains due to its fire-retardant properties, heat resistance, durability, and ability to block smoke and flames, providing effective containment and protection in case of fire emergencies.
| Style No. | Basic fabric | Weight | Thickness | Color | Coating |
|---|---|---|---|---|---|
| Smoke Curtain Fabric | |||||
| This material is composed of a technical textile, which consists of fiberglass. It is coated on both sides with polyurethane, a flame retardant material. The polyurethane coating serves several functions: it makes the fabric easier to handle, adds stiffness to it, prevents smoke from passing through, and protects it from unraveling. Furthermore, this material has water repellent properties and demonstrates exceptional resistance against cutting and acidic substances. Functions： Stop smoke for 60 minutes at 1000℃. Stop smoke for 150 minutes at 600℃. | |||||
| Suntex-2005 | fiberglass | 460gsm | 0.4mm | grey | 2 sides |

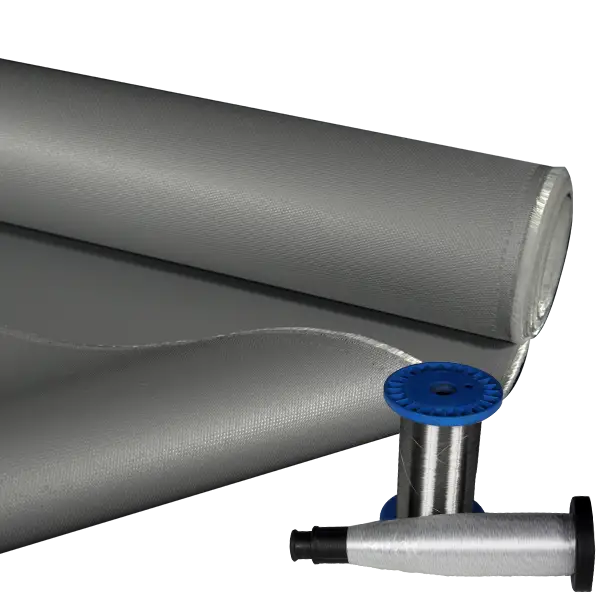

| Fire Curtain Fabric | |||||
| This material is a type of technical textile that consists of class E fiberglass reinforced with s.s wire. It is coated on one side or both sides with a flame retardant polyurethane compound. Functions： Fire resistant of 180 minutes at 1000℃. | |||||
| Suntex-2104 | V4A fiberglass | 505gsm | 0.4mm | grey | 1 side |
| Suntex-2112 | V4A fiberglass | 540gsm | 0.4mm | grey | 2 sides |
| Suntex-2040 | V4A fiberglass | 690gsm | 0.65mm | grey | 1 side |
| Suntex-2036 | V4A fiberglass | 710gsm | 0.65mm | grey | 2 sides |

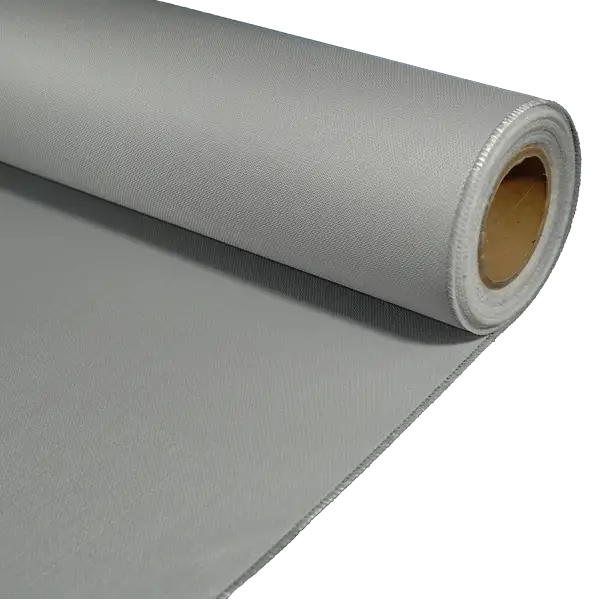

Silicone coated fiberglass fabric
Silicone coated fiberglass fabric is ideal for fire curtains due to its high temperature resistance, flame retardancy, durability, flexibility, and ability to withstand intense heat, providing reliable fire protection and containment.
| Style No. | Weight | Thickness | Color | Coating |
|---|---|---|---|---|
| Suntex-1222 | 820gsm | 0.65mm | white | 2 sides |

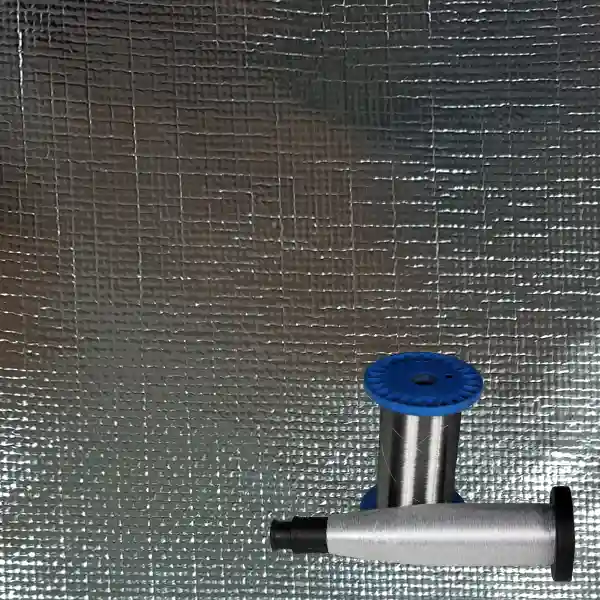

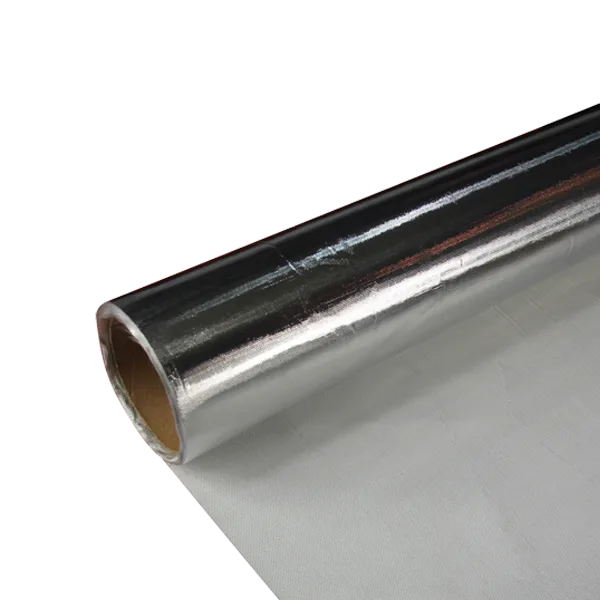

Aluminum foil coated fiberglass fabric
Aluminum fiberglass fabric is suitable for fire curtains due to its heat reflection, flame resistance, durability, and ability to provide a barrier against fire and radiant heat, ensuring effective fire containment and protection.
| Style No. | Basic fabric | Weight | Thickness | Color | Coating |
|---|---|---|---|---|---|
| Suntex-6009 | fibergalss | 220gsm | 0.2mm | sliver | 1 side AL film |
| Suntex-6025 | V4A fibergalss | 1350gsm | 1.4mm | sliver | 2 sides AL foil |

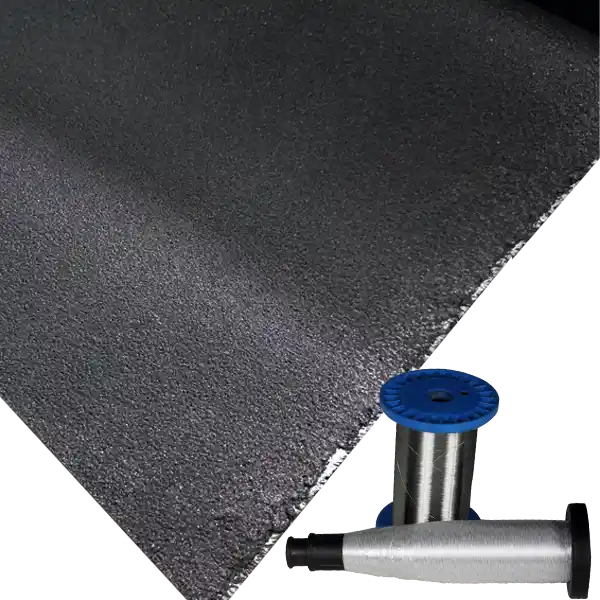

Graphite coated fiberglass fabric
When exposed to temperatures above 140°C, the coating system forms an expanding, foaming substance that provides thermal insulation.
This fabric is a stainless steel wire reinforced glass fabric with a specially formulated intumescent fire retardant graphite material. The material does not generate toxic emissions, and has a good resistance to hydrolysis whilst still having a flexible handle.
| Style No. | Basic fabric | Weight | Thickness | Color | Coating |
|---|---|---|---|---|---|
| Suntex-5048 | V4A fibergalss | 1700gsm | 1.4mm | black | 2 sides |
